Square Drive Hydraulic Torque Wrench |

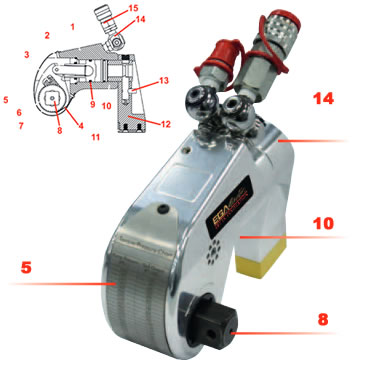

- 1. Mono-body housing.
- 2. Balanced drive rod - wide load-free piston movement.
- 3. Multi-tooth drive segment - up to 27° torque stroke.
- 4. Anti-back lash mechanism - hands free operation.
- 5. Laser engraved torque chart - handy!
- 6. Multi-tooth ratchet - strong Vasccomax teeth provide strength, accuracy and 27° torque stroke.
- 7. One piece Vascomax drive plate provides longer life and increased durability.
- 8. Push through drive - simply switch from loosen to tighten.
- 9. Single seal piston- maintenance free operation.
- 10. Direct housing reaction - allows use of tool without reaction arm.
- 11. Steel reaction boot - field replaceable feature protects reaction arm.
- 12. Long length reaction arm.
- 13. Reaction arm release buton - protected within housing.
- 14. 360° x 360° swivel - Allows hydraulic hose to be clear on all applications.
- 15. No drip quick connect couplers - easy operation.
- 16. Steel alloy piston - robust composition allows for longer operation.
|
 |
|
 |

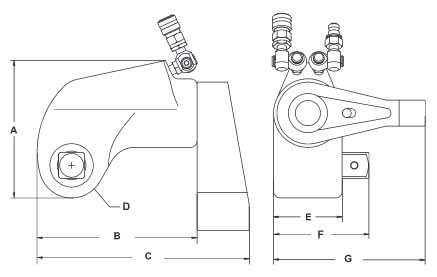

Square Drive Hydraulic Torque Wrench specifications
| Model |
Drive |
Nm |
Ft.Lbs |
Kg |
Accuarcy |
A |
B |
C |
D |
E |
F |
G |
| 56578 |
3/4" |
172-1722 |
127-1270 |
1,7 |
± 3% |
105 |
120 |
160 |
25 |
50 |
70 |
110 |
| 56572 |
1" |
447-4514 |
330-3330 |
4,0 |
± 3% |
135 |
155 |
210 |
33 |
65 |
95 |
150 |
| 56579 |
1.1/2" |
1003-10031 |
740-7400 |
8,5 |
± 3% |
180 |
210 |
280 |
45 |
90 |
130 |
200 |
| 56580 |
1.1/2" |
1491-14925 |
1100-11010 |
13 |
± 3% |
200 |
230 |
310 |
49 |
100 |
140 |
220 |
| 56581 |
2.1/2" |
2630-27964 |
1940-20625 |
28 |
± 3% |
230 |
240 |
410 |
60 |
125 |
180 |
280 |
| 56582 |
2.1/2" |
3687-36872 |
2720-27200 |
32 |
± 3% |
260 |
310 |
410 |
65 |
135 |
190 |
300 |
| 56583 |
2.1/2" |
7862-78625 |
5800-58000 |
60 |
± 3% |
290 |
390 |
520 |
80 |
165 |
230 |
360 |
